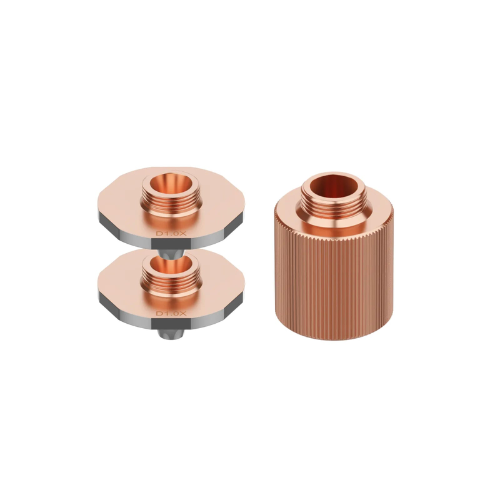

xTool Double Layer Cutting Nozzle Set for MetalFab

The xTool Double Layer Cutting Nozzle Set for MetalFab is an essential add-on designed to optimize the cutting performance of your xTool MetalFab laser for thicker carbon steel and galvanized sheets. This specialized nozzle set ensures cleaner, more efficient cuts on demanding metal materials.

Key Features

• Specialized for Thick Metals: Primarily used for cutting carbon steel and galvanized sheets with a thickness of 2mm or more. This set enhances the MetalFab's capability for heavier gauge materials.

• Dual Nozzle Diameters: Includes two double-layer nozzles:

  • 1.0mm diameter nozzle: Recommended for cutting sheets with a thickness below 8mm.

  • 1.2mm diameter nozzle: Required for cutting sheets of 8mm and above.

• Includes Focus Extension Tube: Comes with a 20mm focus extension tube, which is critical for maintaining optimal laser focus when cutting thicker materials, ensuring maximum efficiency and cut quality.

• Optimized Air/Gas Flow: Designed to work with oxygen at a precise pressure of 0.06 to 0.07 MPa for superior results on carbon steel and galvanized sheets over 2mm. This controlled gas flow helps evacuate molten material and prevents dross.

• Enhanced Cut Quality: The double-layer design and precise focus aid in achieving cleaner edges and smoother cuts, reducing post-processing work on thicker metals.

Benefits

• Expanded Metal Cutting Capabilities: Confidently cut thicker carbon steel and galvanized sheets.

• Improved Cut Quality: Achieve cleaner, more professional results on challenging materials.

• Optimized Performance: Ensure your MetalFab is perfectly configured for heavy-duty metal cutting tasks.

• Increased Efficiency: Reduce the need for rework and improve throughput on thick metal projects.
